GMS-IV Series

GMS-IV is a low-noise measuring preamplifier for monitoring gas insulated switchgear (GIS).

GMS-IV-50dB

30 dB – 50 dB
Gain

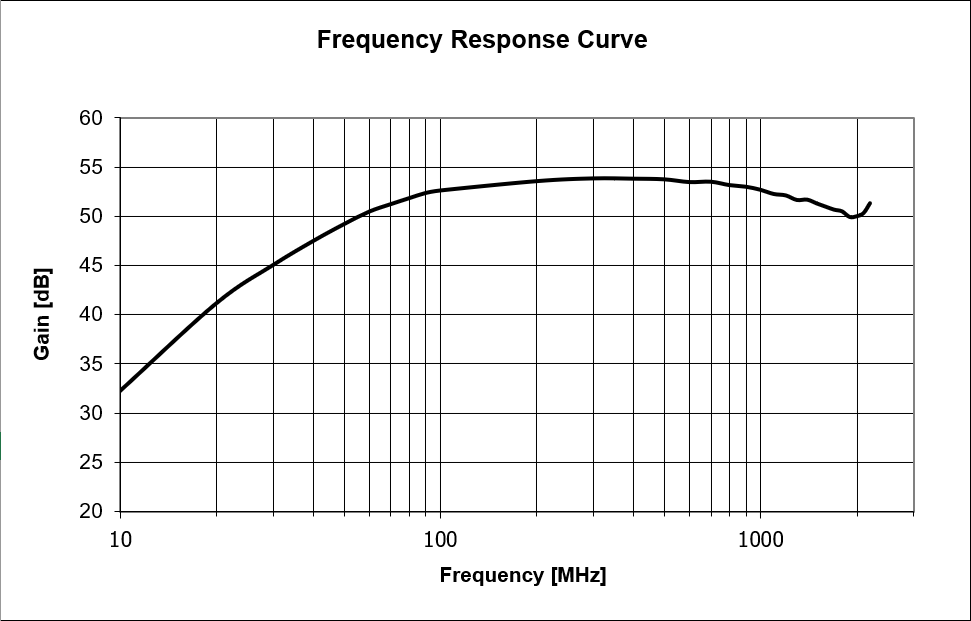

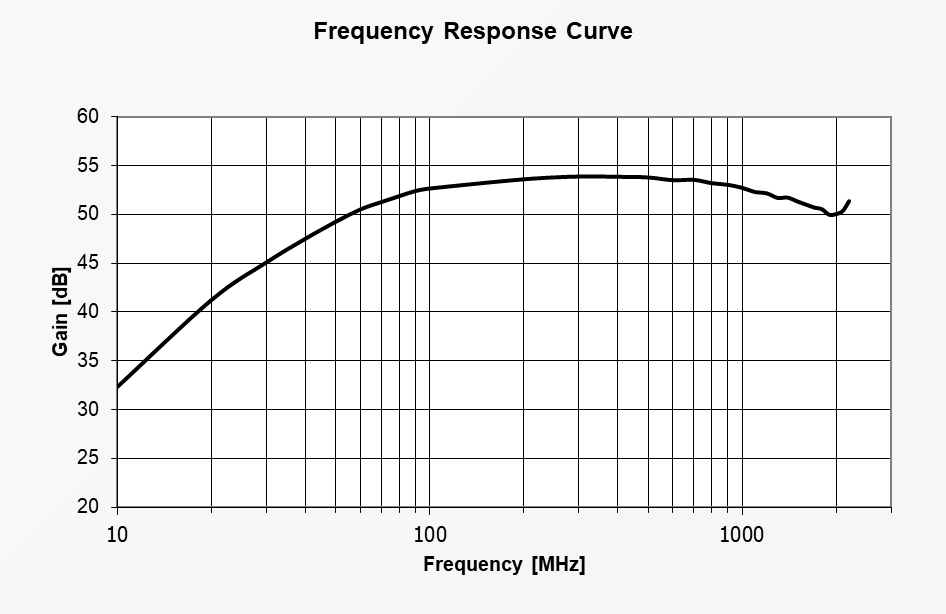

100 MHz – 2.2 GHz
Frequency Range

12 V – 18 V
Power Supply

More Specifications

238 mA
Supply Current

>- 39 dB
Protection Level

0 … 70 °C
Operating Temperature

420 g
Weight

121 mm x 45 mm
Dimensions

…

Description

Features

Technical Specifications

Variations

Download Material

Description

GMS-IV is a low-noise measuring preamplifier for monitoring gas insulated switchgear (GIS). This amplifier technology allows to detect the broadband transmissions small defects or impurities in the GIS. Thus, vulnerabilities can be detected early and damage can be avoided. The amplifiers are powered via the coaxial cable at the output. A protective circuit at the input prevents the destruction by excessive input power.

Trusted by manufacturers and commissioning organisations around the world.
When do you switch to our GMS-IV?

Features

📈 Various gains

↔️ Wide bandwidth (100 MHz – 2.2 GHz)

⚡ Additional surge protection

🔌 External power supply

🧩 Compact design

🟢 Status LED

💧 Splash-proof version

🇨🇭 Swiss quality

Technical Specifications

Electrical Specifications:
Gain
Frequency Range
Power Supply
Supply Current
Protection Level
Operating Temperature
Noise Figure
Maximum Output Power
Absolute Maximum Ratings Min. / Max.
Power Supply
Storage Temperature

Mechanical Specifications:
Length
Width/Height
Weight

50 dB
100 MHz – 2.2 GHz
12 V – 18 V
238 mA (with 15 V power supply)
>- 39 dBm
0 … 70 °C
5 dB
10 dBm (only with 50 dB Gain)

-10 V / 26 V
-65 °C / 150 °C

121 mm
45 mm
420 g
