PSG Series
The PSG series has 1-3 integrated bias tees power supplies and can be used in combination with our GMS-IV amplifiers or for general applications.
100 MHz – 2.2 GHz
Frequency Range
115 – 230 VAC
Power Supply
0.6 dB – 1 dB
Insertion Loss
More Specifications
0 … 70 °C
Operating Temperature
Description

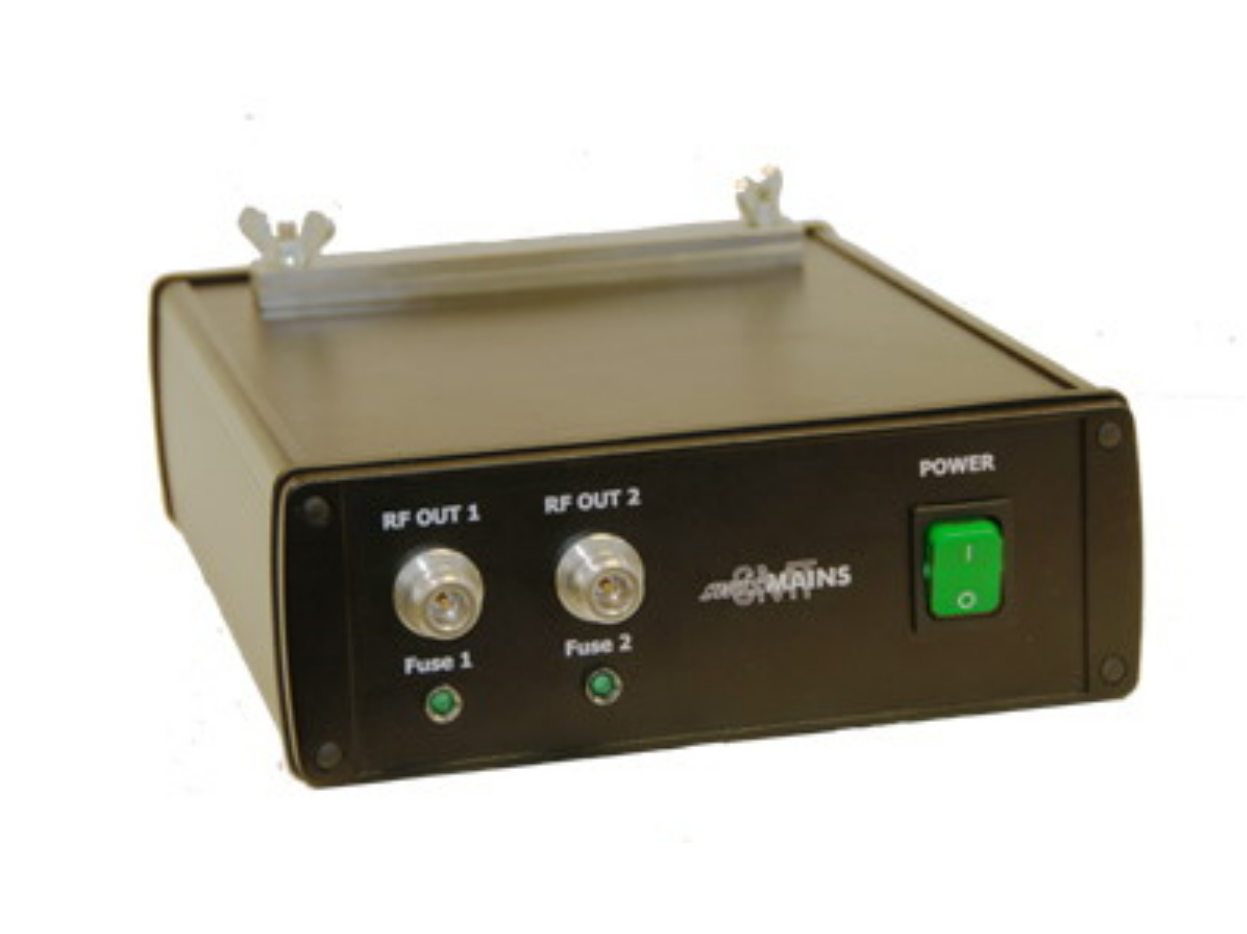

The PSG series has 1-3 integrated bias tees power supplies and can be used in combination with our GMS-IV amplifiers or for general applications. The PSG has on the reverse RF inputs, which are powered with 15VDC. On the front you have the appropriate RF outputs. Each input has its own bias tee power supply, which is protected with a fuse.
Features
⚡ Integrated EMI-Filter
📉 Low insertion loss
🔀 1 – 3 channels
➕ Built-in Bias-Tee for each channel
🛡️ Separate fuse for each channel
🔌 N Type (Female) Connectors
↔️ Wide Bandwidth (100 MHz – 2.2 GHz)
🇨🇭 Swiss Quality
Technical Specifications
Electrical Specifications:
Power Supply
Bias Tee Supply Voltage
Bias Tee Supply Current
Insertion Loss
Frequency Range
Impedance
Operating Temperature
Absolute Maximum Ratings Min. / Max.
Power Supply
Operating Frequency
Storage Temperature
Mechanical Specifications:
Length
Width
Height (without / with Earth terminal)
115 V – 230 V
15 V
500 mA

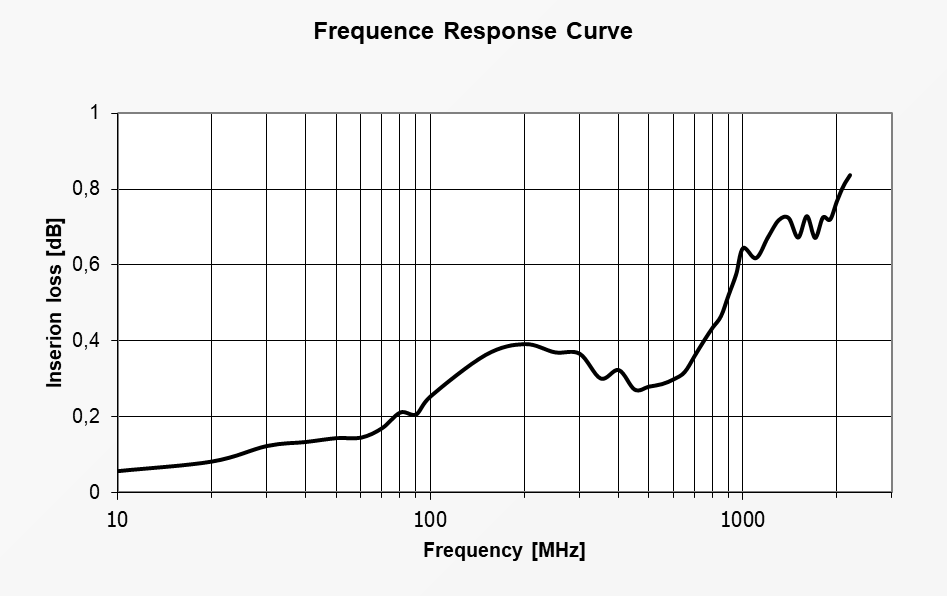

0.6 dB – 1 dB
100 MHz – 2.2 GHz
50 Ω
0 … 70 °C
110 VAC / 350 VAC
47 Hz / 63 Hz
-40°C / 85 °C
302 mm
210 mm
76 mm / 104 mm
Variations
PSG-1CH-EF-ET
1 channel with
3-stage EMI filter & earth terminal
Ord.-Nr.: SMT-55-0076
Delivery time: approx. 4 weeks
Request an offer
PSG-1CH-EF
1 channel with
3-stage EMI filter
Ord.-Nr.: SMT-55-0077
Delivery time: approx. 4weeks
Request an offer
PSG-1CH-MF-ET
1 channel with
mains filter & earth terminal
Ord.-Nr.: SMT-55-0055
Delivery time: approx. 4weeks
Request an offer
PSG-1CH-MF
1 channel with
mains filter
Ord.-Nr.: SMT-55-0056
Delivery time: approx. 4weeks
Request an offer
PSG-2CH-EF-ET
2 channels with
3-stage EMI filter & earth terminal
Ord.-Nr.: SMT-55-0039
Delivery time: approx. 4weeks
Request an offer
PSG-2CH-EF
2 channels with
3-stage EMI filter
Ord.-Nr.: SMT-55-0043
Delivery time: approx. 4weeks
Request an offer
PSG-2CH-MF-ET
2 channels with
mains filter & earth terminal
Ord.-Nr.: SMT-55-0044
Delivery time: approx. 4weeks
Request an offer
PSG-2CH-MF
2 channels with
mains filter
Ord.-Nr.: SMT-55-0045
Delivery time: approx. 4weeks
Request an offer
PSG-3CH-MF-ET
3 channels with
mains filter & earth terminal
Ord.-Nr.: SMT-55-0046
Delivery time: approx. 4weeks
Request an offer
PSG-3CH-MF
3 channels with
mains filter
Ord.-Nr.: SMT-55-0047
Delivery time: approx. 4weeks
Request an offer
