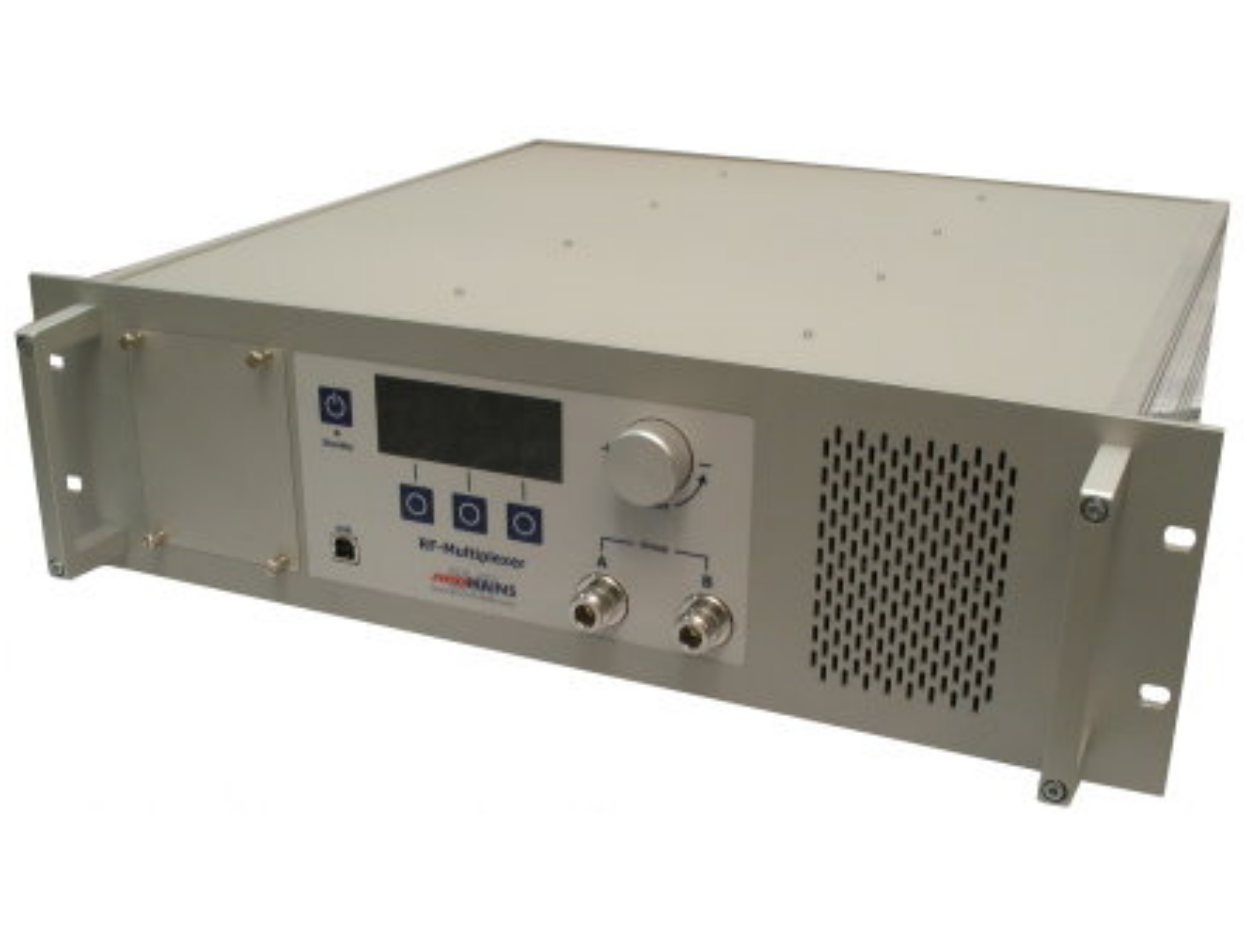

RF-Multiplexer

Specifications:

• Controllable via USB / serial
• Self-explanatory
• 2 parallel channels
• Up to 2 x 12 channels
• Exactly the same length for all measurement paths
• Rack mountable
• Swiss quality

The PMG series is an RF Multiplexer with integrated bias tee power supplies and can be used in combination with our GMS-IV amplifiers or for general applications.
The PMG series has on the back RF inputs, which are divided into two groups A and B. These inputs can be switched as follows on two outputs A and B:

+ Inputs A to Output A and B inputs on output B
+ All inputs to output A
+ All inputs to output B
+ Inputs A to Output B and B inputs on output A

Each input has its own bias tee power supply, which are protected with fuses.

Product

PMG-2-12
PMG-2-9
PMG-2-6
PMG-2-3

Inputs*

2 x 12
2 x 9
2 x 6
2 x 3

Stocked

No
No
No
No

Ordering No.

SMT-55-0031
SMT-55-0028
SMT-55-0030
SMT-55-0029

Price

Request an offer
Request an offer
Request an offer
Request an offer
